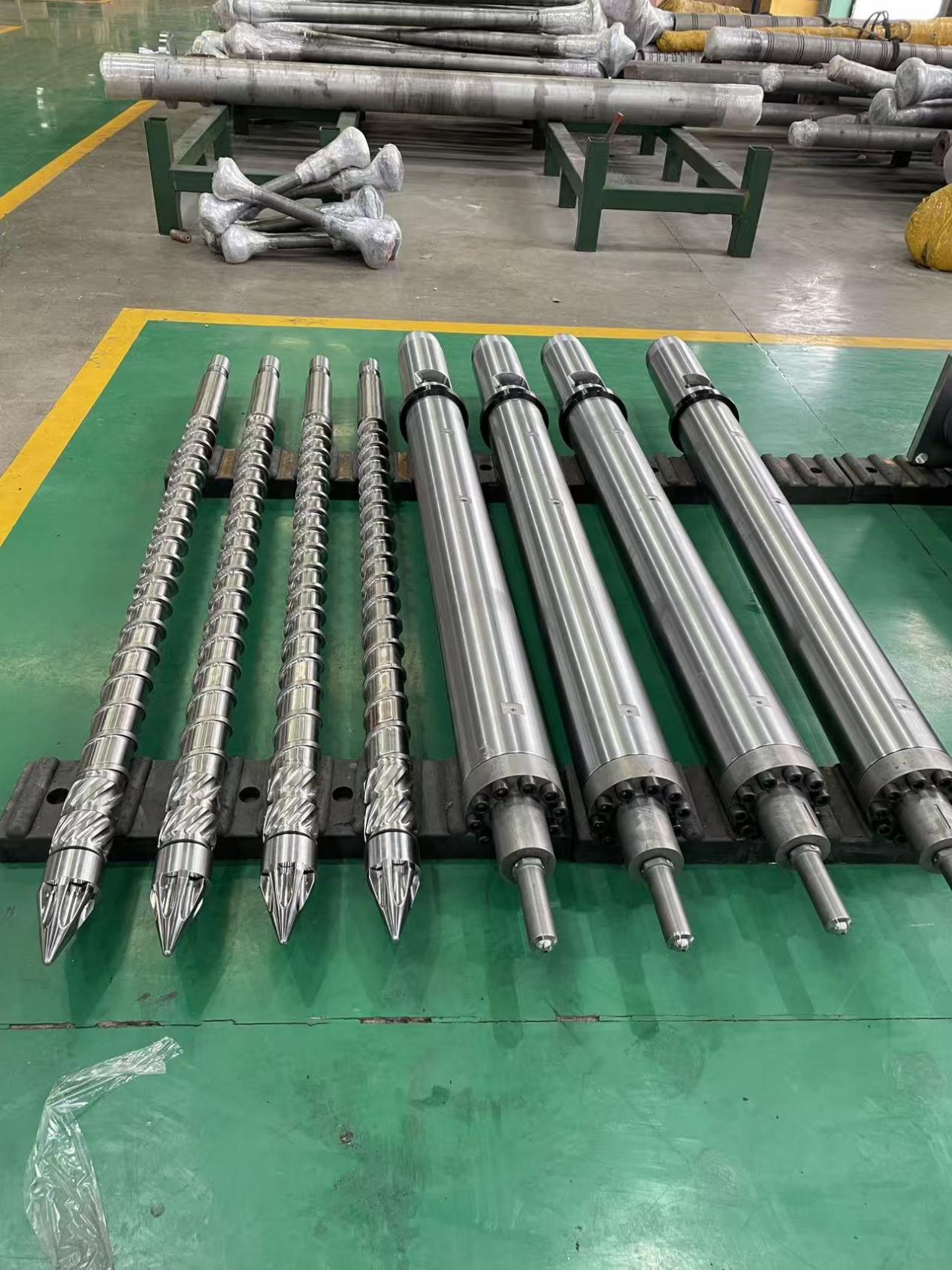

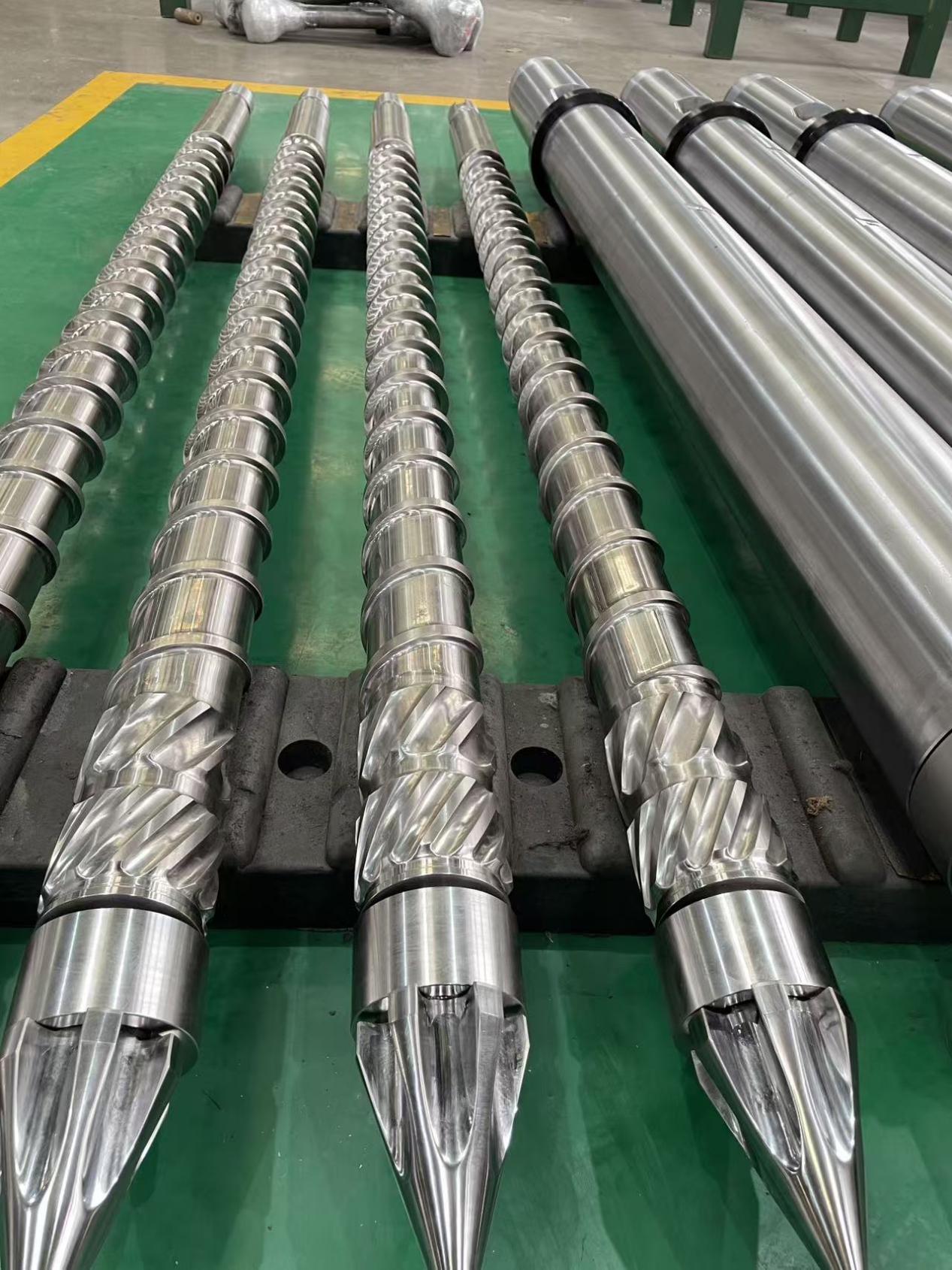

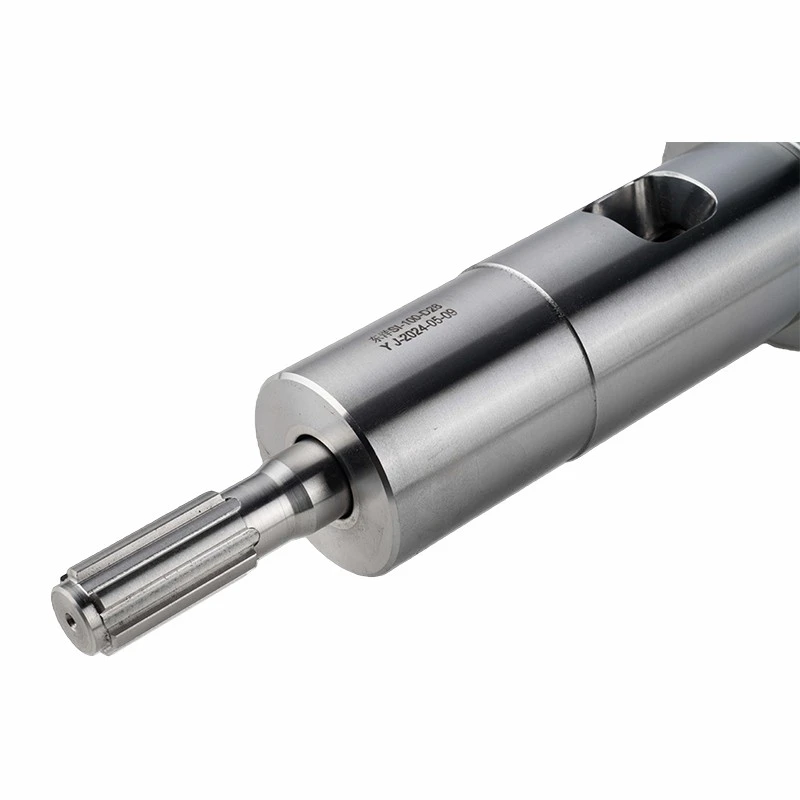

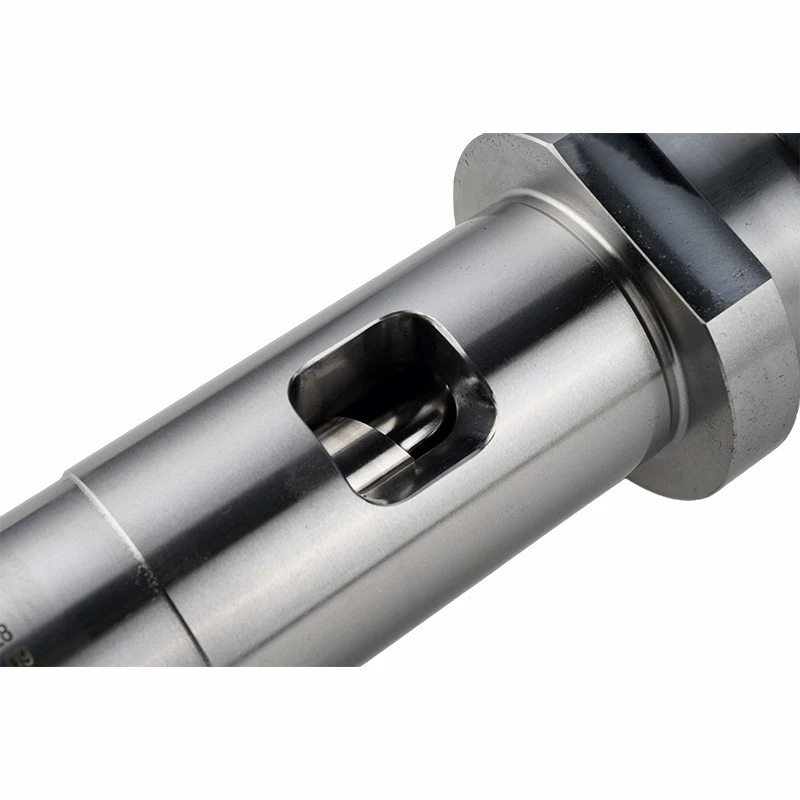

Injection Molding Feed Screws

Our fully hardened feed screws are crafted from imported powder alloy steel. The integral round bar undergoes high-temperature quenching and tempering, achieving a hardness of HRC 60. Combined with precision and rough grinding processes of varying types, the concentricity of the root diameter and outer diameter is controlled within 0.03mm. This meets the high-precision requirements of diverse products, and effectively extends the service life of the screws under different working conditions.

Exceptional Material Performance：Made of premium imported powder alloy steel with high-temperature heat treatment, the screws feature high hardness and excellent dimensional stability, ensuring reliable operation in harsh environments.

Precision Machining：Advanced grinding processes realize ultra-high concentricity of 0.03mm, matching the stringent standards of high-end injection molding production and reducing equipment wear during operation.

Customizable Surface Treatment：Optional PVD coating and chrome plating processes are available to enhance wear resistance, corrosion resistance, and product qualification rate, catering to personalized production needs.

Broad Process Adaptability：With outstanding resistance to wear, corrosion, high temperature, high pressure and high speed, the screws are perfectly suited for high-speed, high-pressure injection processes of all-electric injection molding machines.
