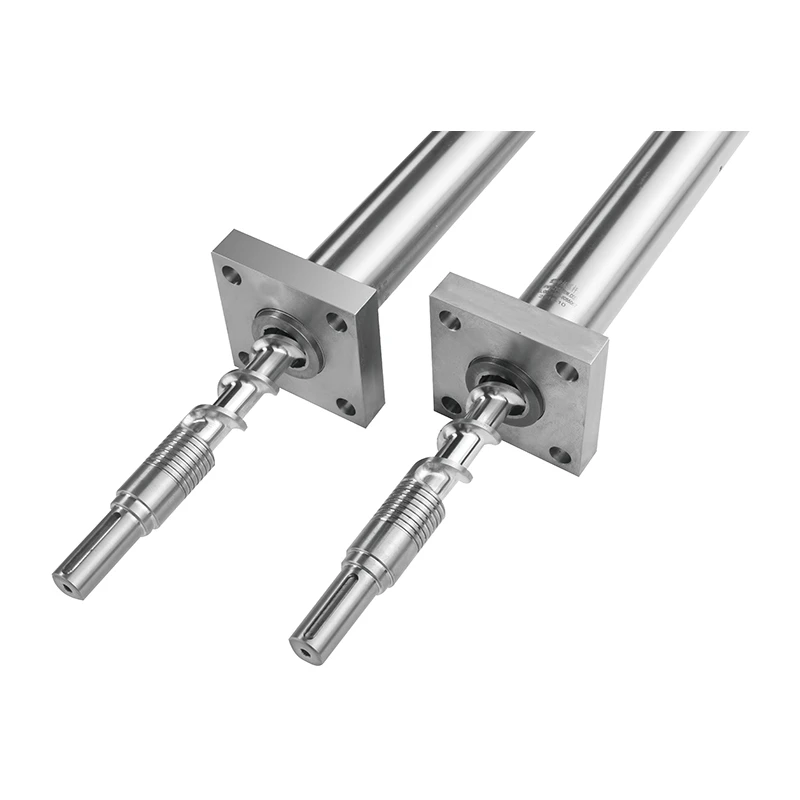

Barrel Screw Extruder

As the core equipment for processing plastics, rubber, and specialty materials, the Barrel Screw Extruder undertakes the critical tasks of raw material melting, plasticizing, mixing, and precise conveying. From new energy vehicle lightweight components and medical-grade precision catheters to aerospace composite materials and food packaging films, this product series features modular design and customized solutions, compatible with general and engineering plastics such as ABS, PP, PE, PA66, and LCP. Covering a full size range of Φ15-Φ500mm with a maximum length of 8000mm, it meets the needs of all scenarios from laboratory R&D to large-scale mass production. Integrated with bimetallic liners via high-temperature centrifugal casting, precision temperature control systems, and intelligent monitoring modules, the equipment achieves efficient conversion of raw materials into high-quality finished products, serving as an indispensable core power unit in modern manufacturing.

1. Precision Structural Design：Adopts innovative screw structures such as pin-type and separated-type designs. The screw flight surface is sprayed with 0.5-0.8mm tungsten carbide alloy, with barrel inner hole roughness Ra≤0.4μm and straightness controlled within 0.015mm/m, ensuring uniform material plasticization and product dimensional accuracy.​
2. Superior Material Compatibility：Screw base material is 38CrMOALA (SACM645) with Stellite/Colmonoy alloy overlay welding. Barrel features bimetallic composite liner (W6/H6/H26 material) with hardness up to HRC58-65, resisting high temperatures of 180-290℃ and high pressures of 1500-2500bar, suitable for processing glass fiber-reinforced and corrosive materials.
3. Intelligent Control System：Equipped with PID temperature control algorithm and real-time monitoring sensors, temperature fluctuation is controlled within ±2℃. Features emergency stop buttons and safety guards, supporting 24/7 continuous stable operation with fault warning response time ≤0.5 seconds.​

4. Modular Flexible Configuration：Modular barrel design enables quick replacement of functional sections. Optional types include open-type, closed-type, side feeding, and liquid injection barrels, adapting to the production of pipes, sheets, films, granules, and other product categories.
